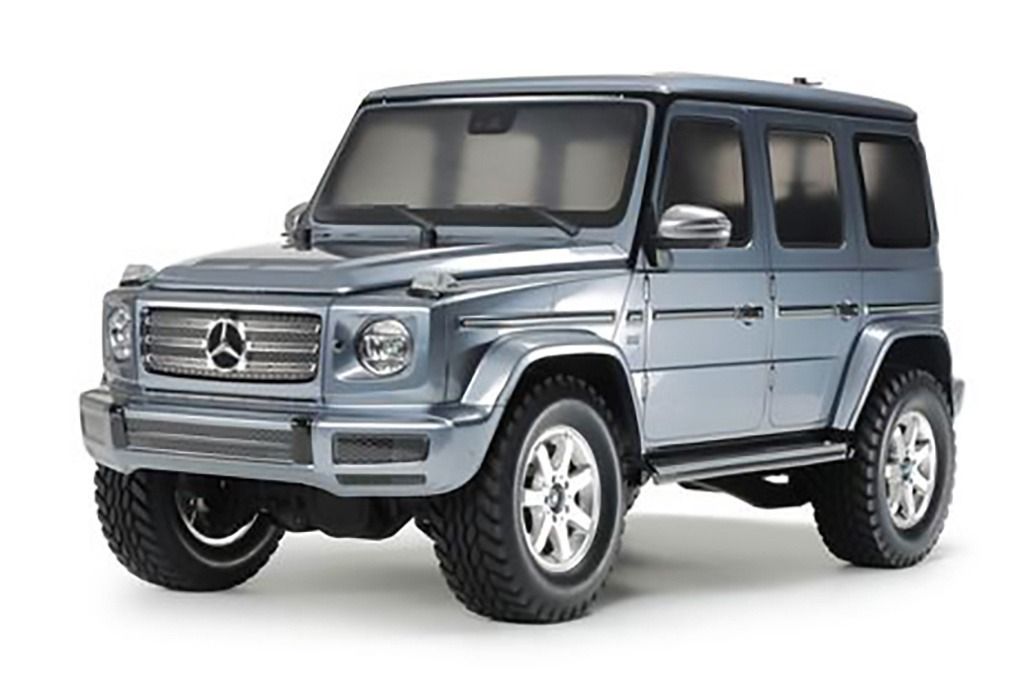

Tamiya 1/10 Scale Mercedes-Benz G 500 RC Model Kit

Tamiya 1/10 Scale Mercedes-Benz G 500 RC Model Kit

Get ready to do some fun trail exploration with the all-new Tamiya CC-02 (Cross Country 2) chassis platform! Tamiya’s designers have been hard at work to bring R/C enthusiasts the next generation of Tamiya trail driving with a completely revamped machine.

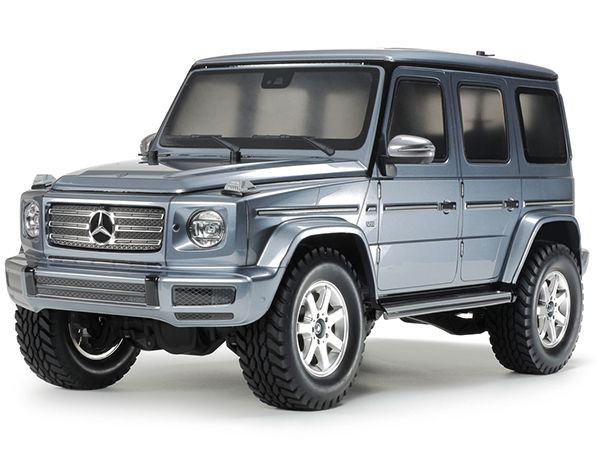

The first body to grace the capable new chassis is a highly-detailed polycarbonate recreation of the Mercedes-Benz G 500, which first graced the Mercedes stable of SUV’s in 2018.

CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with matte plated seven-spoke wheels and grippy block pattern tires.



SPECIFICATIONS AND FEATURES:

• 1/10 scale R/C model assembly kit. Length: 455mm, width: 196mm, height: 207mm. Wheelbase: 267mm.
  TLU-01 LED Light Unit and LEDs included.
• G 500 body is recreated accurately in polycarbonate. Separately moulded parts are included for the front grille, side mirrors and spare tire cover.
• Designed for a wide range of off-road terrain including rocky surfaces, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability.
• A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears to the front and rear.
• Twenty gear ratios between 11.09:1 and 29.28:1 are possible using separately sold pinion gears, for some serious fine-tuning!
• 4-link rigid suspension front and rear, with CVA oil dampers.
• Differential Gears: 3-bevel differential gears provide a smooth driving. They can also be locked (with reassembly) for driving on poor surfaces.
• Axle Housings: Housings enclose a central differential gear and axle shafts in a rigid setup that lets the chassis take on rough terrain with ease: if one wheel rises, the other is pushed downward to help the chassis gain traction.
• Gearbox: Power from the motor is routed via the realistic looking gearbox and transfer case, from its propeller shafts to the differential gears, and finally to the wheels.
• 4-Link Suspension: A rigid setup employs 4 plastic link arms on each axle housing and four oil dampers. This ergonomic design offers superior durability and the ground clearance.
• Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Required Items (not included): 2-Channel radio, steering servo, 7.2-7.4volt battery pack with compatible charger, and Tamiya PS paint.



---

Deluxe Materials Plastic Magic Cement 40ml (AD83):

Plastic Magic Cement is a thin, liquid plastic cement with a 10-15 sec adjustment time & non-clog action. It is non-toxic, non-flammable, has minimal odour and almost zero emissions when compared to competitors.

---

Carson RC Pack, Batteries & Charger (C707132):

This product, developed by Carson is designed especially for Tamiya RC car kits. Included in the box is the radio handset, receiver, steering servo, 7.2v battery and charger.

• Carson 2.4Ghz Reflex 3.1 Twin Stick Radio with Receiver and Steering Servo
• 7.2v 2100Mah Battery with Tamiya Connector
• 300ma Trickle Charger
• Designed for use with Tamiya Radio Control Car Kits
• New Auto-Scanning Interference Free Radio System - no more cross control issues

---
