Proxxon TBM 220 Bench Drill 702060 28128

View more products from Proxxon

Want it on Tuesday 30th November? Place your order within hrs minutes and select Next Day Delivery at the checkout.
Proxxon Tbm 220 Bench Drill (28128)
£172.95
Proxxon 0.5 - 6.0mm for TBM Drill Machine (28122)
£9.75
Proxxon MS 4 Machine Vice (28132)
£15.75

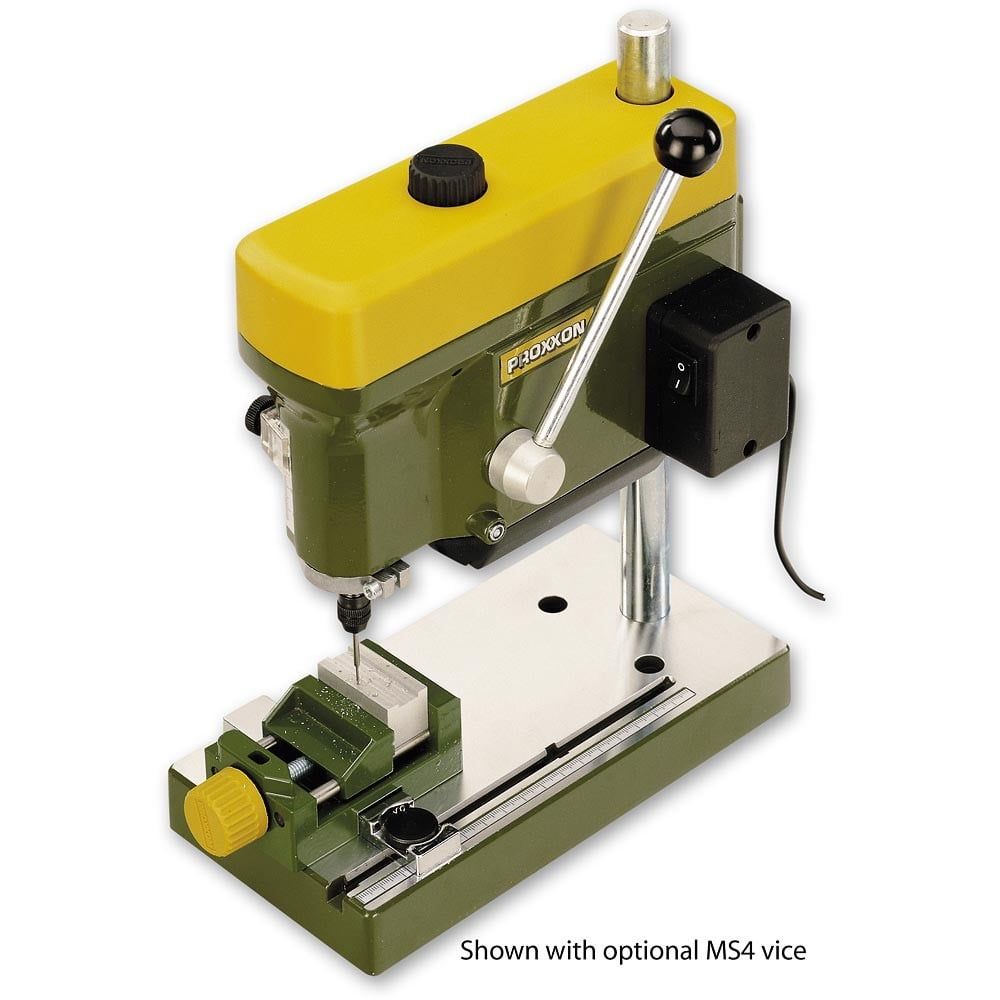

Proxxon TBM 220 Bench Drill

  • Machined worktop of high quality, ribbed die cast aluminium
  • Adjustable fence with scale
  • Depth gauge with scale
  • Extremely high rotational accuracy

The machined worktop is of high quality, ribbed die-cast aluminium (220 x 120mm), featuring an adjustable fence with scale and a solid, hard-chromed steel column, 280 high x 20mm diameter. The super stable die-cast head comes with a VDE approved 230V, 85W motor. Power transmission is by aluminium pulleys and flat belt. There are three spindle speeds of 1,800, 4,700 and 8,500 rpm. Chrome feed lever with adjustable depth scale. The spindle is supported by three high quality sealed bearings. The recessed spindle is for insertion of MICROMOT steel collets, but also threaded for drill chucks 3/8" thread giving extremely high rotational accuracy with 30mm feed. The quill diameter is 32mm, with return spring. Throat depth, column to drill spindle, 140mm. Quick coarse height adjustment of headstock is with clamp levers. Maximum height 140mm. Supplied with six triple slit precision collets (1.0, 1.5, 2.0, 2.4, 3.0, 3.2mm).

Specification:

Base Size 220 mm x 120 mm
Chuck Capacity 1 mm to 3.2 mm
Chuck Travel 30 mm
Chuck Type collet
Collets Supplied 1.0, 1.5, 2.0, 2.4, 3.0 and 3.2 mm
Corded or Cordless Corded
Diameter of Column 20 mm
Model TBM 220
Motor Power 85 W
Overall L x W x H 320 mm x 240 mm x 130 mm
Speed Range 1,800, 4,700 & 8,500 rpm
Throat Depth 140 mm
Speed Range 1,800, 4,700 & 8,500 rpm
Voltage 230 V
 Code  28128


Proxxon MS 4 Machine Vice:

  • Die-cast zinc with three machined sides
  • Slot fits the adjustable fence of the drill stand MB 140/S and bench drill TBM 220
  • Horizontal and vertical V-slots in jaw
  • Jaw width 50 mm and height 10mm
  • Maximum clamping width 34mm

Proxxon Drill Chuck for TBM Bench Drill:

  • For drill shank sizes 0.5 - 6.0mm for TBM Drill Machine
  • Genuine Rohm high quality product
