Charnwood W824 Midi Woodturning Lathe

View more products from Charnwood

Want it on Tuesday 22nd June? Place your order within hrs minutes and select Next Day Delivery at the checkout.
Charnwood Midi Lathe (CHW824)
£399.00
Midi Lathe & Viper 2 Chuck PACKAGE DEAL (W824P)
£475.00
Out of stock
VIPER2 70mm Diameter 4 Jaw Geared Scroll Chuck (VIPER2)
£99.00
Out of stock
Drill Chuck 16mm Capacity for Midi Lathe (DC16MT2)
£20.00

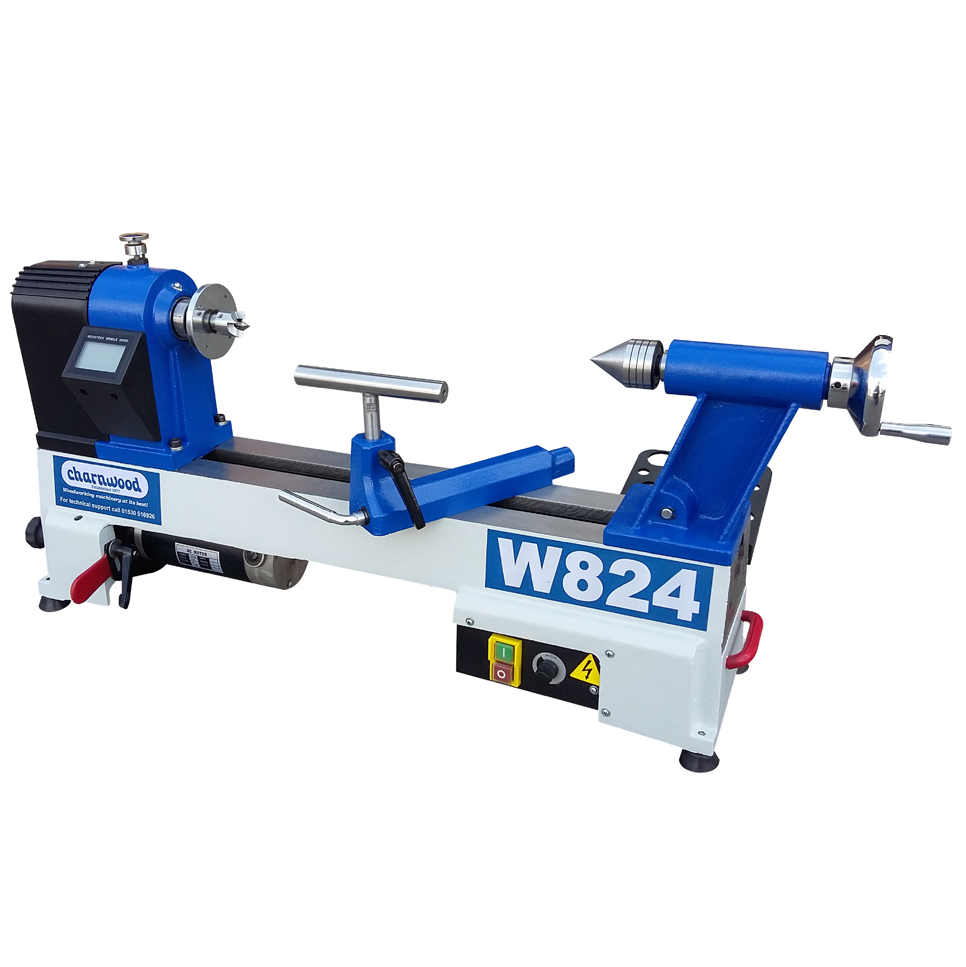

Charnwood W824 Midi Woodturning Lathe W824

The Charnwood W824 Midi Woodturning Lathe continues to be a best seller. It’s size is such that it can accomplish most of the projects turners are likely to try. It is also Charnwood’s largest lathe that can be moved off the bench when not in use. Its size and weight therefore makes it manageable to move. Please remember that it is 32KG and therefore care should be taken when lifting to avoid personal injury. It also might be best to get a helping hand when moving the Charnwood W824 Midi Woodturning Lathe. Also, It has been further developed to now include an indexing system on the headstock spindle.  It is also more robust electronics, specifically designed for UK voltage.

Key Features:

The bed of the Charnwood W824 Midi Woodturning Lathe is one-piece precision ground cast iron giving 14″ between centres. Also the new heavy duty centres are supplied as standard. The bowl turning capacity of 12″ diameter over the bed. This requires a very low speed which is achieved using a converter and a DC motor. Also a clear LCD display shows the current RPM in use.

The tool rest banjo is a cam-lock design for rapid adjustments with all metal components. The tool rest itself the ever popular round bar made from hardened steel.
The headstock is hollow centred to allow for easy tool removal. The tailstock is also hollow and has automatic centre removal.

Standard Equipment:

Supplied with drive and tail centres 2MT. knockout bar. 6″ toolrest with 5/8″ shank. 3″ diameter faceplate.  Tool holder. Carrying handles and cable tidy.
N.B. The distance between centres will vary and be dependent on the type of centres or accessories used. Maximum distance is 450mm (18″).

  • Distance between centres 360mm (14″).
  • Distance over bed 300mm (12″).
  • Motor DC (carbon brush) 550w (3/4hp), 240v.
  • Speed range 500 – 3800rpm.
  • Spindle thread size 1″ x 8tpi.
  • Spindle tapers 2MT.
  • Indexing Positions 24 ( every 15 degrees).
  • Dimensions (WxDxH) 980mm x 310mm x 440mm.
  • Weight 32kg.

Viper 2 Chuck

VIPER2 70mm Diameter 4 Jaw Geared Scroll Chuck

A compact scroll chuck. The jaws adjust by a geared mechanism for simple one handed operation. Self-centring, high precision design. Ideal for Mini and Midi sized lathes. The standard dovetail jaws can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned. Supplied with dovetail jaws, wood screw, T-bar for locking the jaws and T-handled hex key for swapping the jaws.


Package Deal

Buy the Charnwood Midi Lathe & Viper 2 Chuck together and save £23.00! Ref. W824P
