Unimat 6 in 1 MetalLine ML Modular Power Tool System

View more products from Unimat

Want it on Tuesday 30th November? Place your order within hrs minutes and select Next Day Delivery at the checkout.
Unimat 6 in 1 MetalLine ML Modular Power Tool System (83001)
£629.00

With this superb set it is possible to construct any one of the following 6 machines, and easily change from one to another:

  • Vertical Milling Machine
  • Horizontal Milling Machine
  • Centre Drilling Machine
  • Metal Turning Lathe
  • Hand Held Drill
  • Hand Held or Bench Mounted Sander

Everything including the mains supply is in the set, and it is small enough to take with you when travelling - total weight just 6.5 kilos

This UNIMAT system is supplied with full-metal components. The new slides, counter shafts and tail stocks are much more robust than the Classic System and accuracy has been improved.

The Metal Line modular system is fully compatible to all parts and accessories of the UNIMAT 1 range.

Model makers as well as craftsmen benefit from advantages like:

  • high stability and precision of entire system despite of modular structure
  • tolerance < 0,1mm can be held
  • true-running because of:
  • mechanically reworked and matched profiles
  • CNC milled spiral of 3-jaw chuck
  • double-ball bearing live center with big machine-tool center
  • driven in, fitted covers
  • close tolerance and raised flange of main spindle at metal countershaft
  • adjustable backlash (according to application)
  • pleasant profi design
  • increased wall thickness of profiles (more torsionally stiff, more stable etc.....)
  • mechanically reworked full metal sledge
  • metal handwheels with adjustable vernier
  • also available as computer-controlled variant type

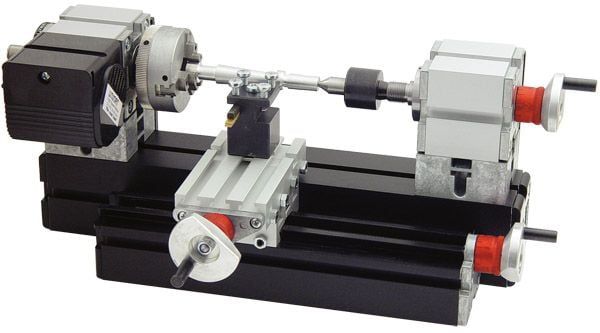

Assembled as a Metal Turning Lathe: -

Machine bed length: 28cm

Metal turning lathe

Longitudinal Slide 200mm:
With extremely easy-glide metal carriage guide, adjustable vernier, (scaling 0,05mm), guide precisely adjustable through 3 screws, also available in 0,5m and 1m, travel 150mm

Cross Slide:
Metal handwheel with adjustable vernier, scaling 0,05mm, metal sledge parts are precisely mechanically reworked, guide precisely adjustable through 4 screws travel 36mm

Precision Live Center:
Grinded center in two special ball bearings enables higher accuracy and better stability. For higher stressability and precise metal working

Tailstock - Full Metal:
Centric to countershaft, adjustable vernier, handwheel isn't longitudinally movable. Same as countershaft - metal covers are guided full metal in the mechanically reworked profile. So absolutely accurate center and pearl drilling can be guaranteed; thick-walled profile, tailstock quill travel 28mm

Countershaft - Full Metal:
Same as tailstock - metal covers are guided full metal in the mechanically reworked profile. So absolutely accurate center and pearl drilling can be guaranteed. Increased precision and load bearing capacity, thick-walled profile, no deformation
