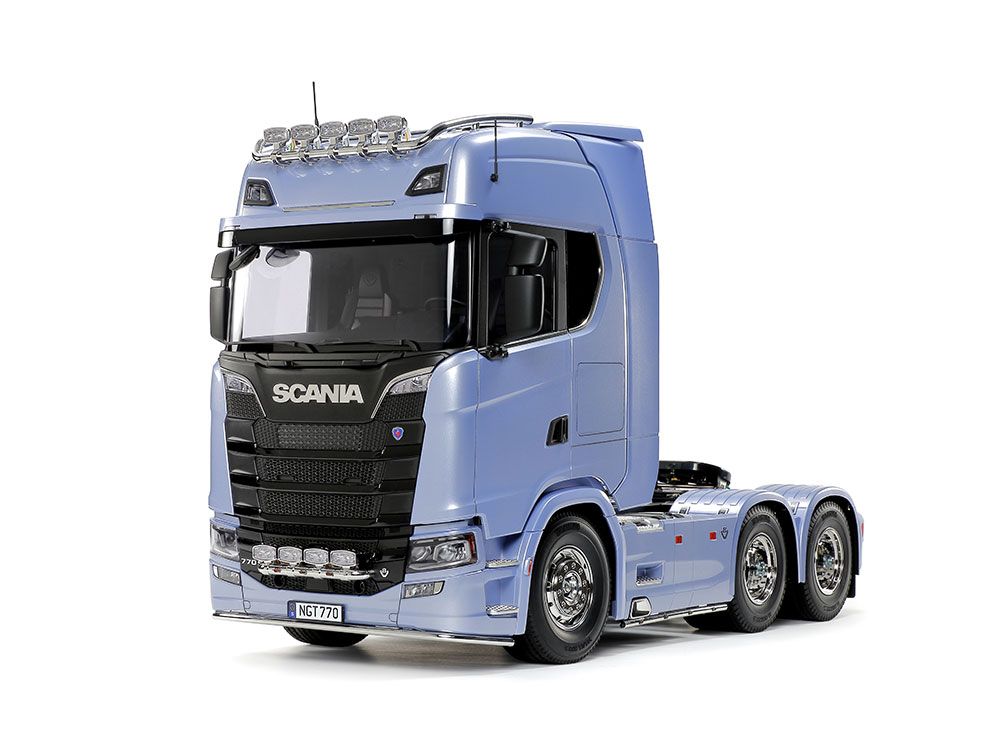

Tamiya 1/14 Scania 770 6x4 RC Truck Kit
This R/C model assembly kit recreates the Scania 770 S 6x4, a double rear-axle drive trailer head equipped with a 16.4-liter V8 diesel turbo engine capable of 770hp added in 2020 to the Swedish manufacturer Scania's top-grade S Series - which had undergone a full model change in 2016, its first for 21 years. The model has a highly realistic body, with parts included to depict customizations such as a roof bar featuring light pods, grille bar, low bar and side bars, plus metal transfers to capture V8 and 770 S emblems. The interior gets the detailed Tamiya treatment, too, with depictions of the modern dashboard design and even the V8 embossings on the seats. Its ladder frame features aluminum side channels with resin cross members, and power from the front-mounted motor is delivered to two rear axles via a 3-speed transmission and propeller shaft. A built-in differential gear on each axle enables smooth cornering. Highly-realistic suspension utilizes metal leaf springs and friction dampers, and the model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles.
Please note: RC Equipment, paint and glue are not included with this model. This is a model kit that requires assembly.
Specifications:
- Length: 532mm, width: 193mm, height: 307mm, weight (without optional parts): approx. 4.0kg
- Wheelbase: 237mm + 103mm
- Tread: 155mm (front), 138mm (rear, double tire)
- Chassis: aluminum & polycarbonate resin ladder frame
- Suspension: front/rear leaf spring rigid
- Caster angle (front/rear): 0°/0°
- Aluminum dummy dampers (front/rear)
- 3-gear transmission (gear shifting operated via transmitter)
- Gear ratio: (1st gear) 32.49:1, (2nd gear) 17.76:1, (3rd gear) 10.66:1
- 3-bevel differential gears
- Type 540 motor
- Tire width/diameter: 30mm/85mm (front); 22mm/83mm (rear)
Tamiya Multi-Function Control Unit (available separately)
Offers light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.
Truck Radio Package (available separately)
Essential for turning the truck from static to radio controlled.
Includes:
- C608054 - Carson 7.2V 2100mAh Battery
- ACS48T - Battery Charger
- C501006 - Reflex 6 Channel Transmitter and Receiver
- 2x RC3S - Standard Single Servo
Deluxe Materials Plastic Magic Cement 40ml (AD83)
Plastic Magic Cement is a thin, liquid plastic cement with a 10-15 sec adjustment time & non-clog action. It is non-toxic, non-flammable, has minimal odour and almost zero emissions when compared to competitors.
