Tamiya 1/10 Scale Saint Dragon 4WD Model Kit with Full RC Equipment Deal

View more products from Tamiya

Want it on Friday 23rd February? Place your order within hrs minutes and select Next Day Delivery at the checkout.
Tamiya 1/10 Scale Saint Dragon 4WD Model Kit with Full RC Equipment Deal (47459RC)
Deluxe Materials Plastic Magic Cement (AD83)

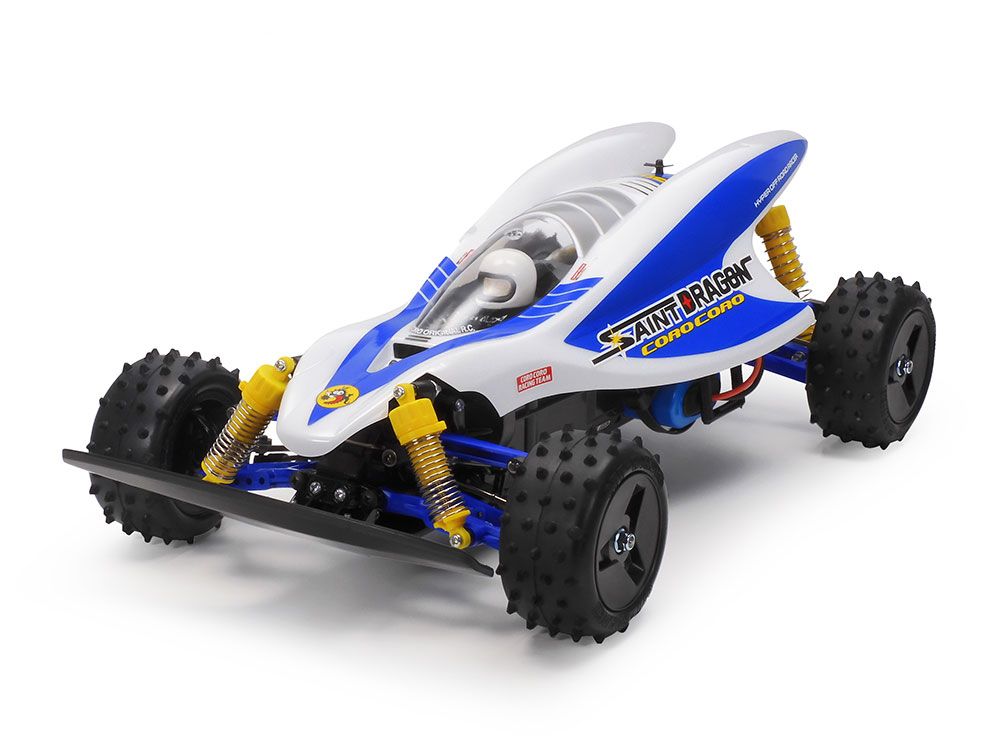

Tamiya 1/10 Scale Saint Dragon 4WD Model Kit with Full RC Equipment Deal


This R/C assembly kit recreates the 4WD buggy Saint Dragon which was the main model of a popular 1980s Japanese comic. The chassis consists of a tough bathtub frame plus front and rear gearboxes with suspension attached. 4-wheel double wishbone suspension uses CVA oil dampers for a superior ride, and a front stabilizer for a firm setup. The stylish body is moulded in polycarbonate and pre-painted white, just requiring application of stickers to finish it.


Efficient Shaft-Driven 4WD
The chassis features a shaft-driven 4WD drivetrain married to a lightweight and tough bathtub frame that employs front and rear gearboxes with the suspension attached to them; that suspension utilizes upper "I" and lower "H" arms, and offers a ground-hugging drive. CVA oil dampers and a front stabilizer contribute further to an excellent drive. Both gearboxes house a gear differential, and are compact to ensure plentiful ground clearance. The kit also features an aluminium motor mount for superior heat dissipation.



  • Length: 390mm
  • Width: 240mm
  • Height: 135mm
  • Wheelbase: 260mm
  • Minimum ground clearance: 23mm
  • Tread: 203mm (front), 194mm (rear)
  • Bathtub frame
  • Tire width/diameter: 38/83mm (front and rear)
  • Shaft-driven 4WD
  • 3-bevel differential gears (front and rear)
  • 3-piece steering tie-rod
  • 4-wheel independent double wishbone suspension
  • Gear ratio = 7.68:1
  • Type 540 Motor and ESC included


RC Equipment Included:

  • 2-channel R/C Transmitter and Receiver
  • R6/AA/UM3 batteries for transmitter
  • Battery pack & charger
  • Steering Servo


Paints and glue are required to complete this model kit. Not included. Available separately.

Deluxe Materials Plastic Magic Cement 40ml (AD83):

Plastic Magic Cement is a thin, liquid plastic cement with a 10-15 sec adjustment time & non-clog action. It is non-toxic, non-flammable, has minimal odour and almost zero emissions when compared to competitors.
